StarFire SG1024 / MA 25PL Printhead
Unit Price:$2,910.00 - 2,970.00/pc
Spectra S-CIASS SM-128AA Printhead
To be used with: SID UV200S, AGFA 2030 X-2, Jeti 3312 Solvent RTR / Jeti 3318 Solvent RTR / Jeti 3348 HSS / Jeti 3348 JetSpeed RTR / Jeti 3348 UV Galaxy RTR / Jeti 5048 UV XL / Jeti 3150 UV / Jeti 1224 UV / Agfa Jeti 2030 UV, HP Scitex XP2700 / XP2750, Infiniti FY3360AS, Spühl Virtu RS 35/48 / Virtu RS 25/48, Durst Rho 160R / Rho 161 TS / Rho 162 TS / Rho 205 / Rho 315r / Rho 600 / Rho 600 Pictor / Rho 700 HS / Rho 800 Presto, Zünd UVjet 250-Combi, Neolt SuperJet-M 2050 / SuperJet-M 2500 / SuperJet-M 3200
Remarks: Original

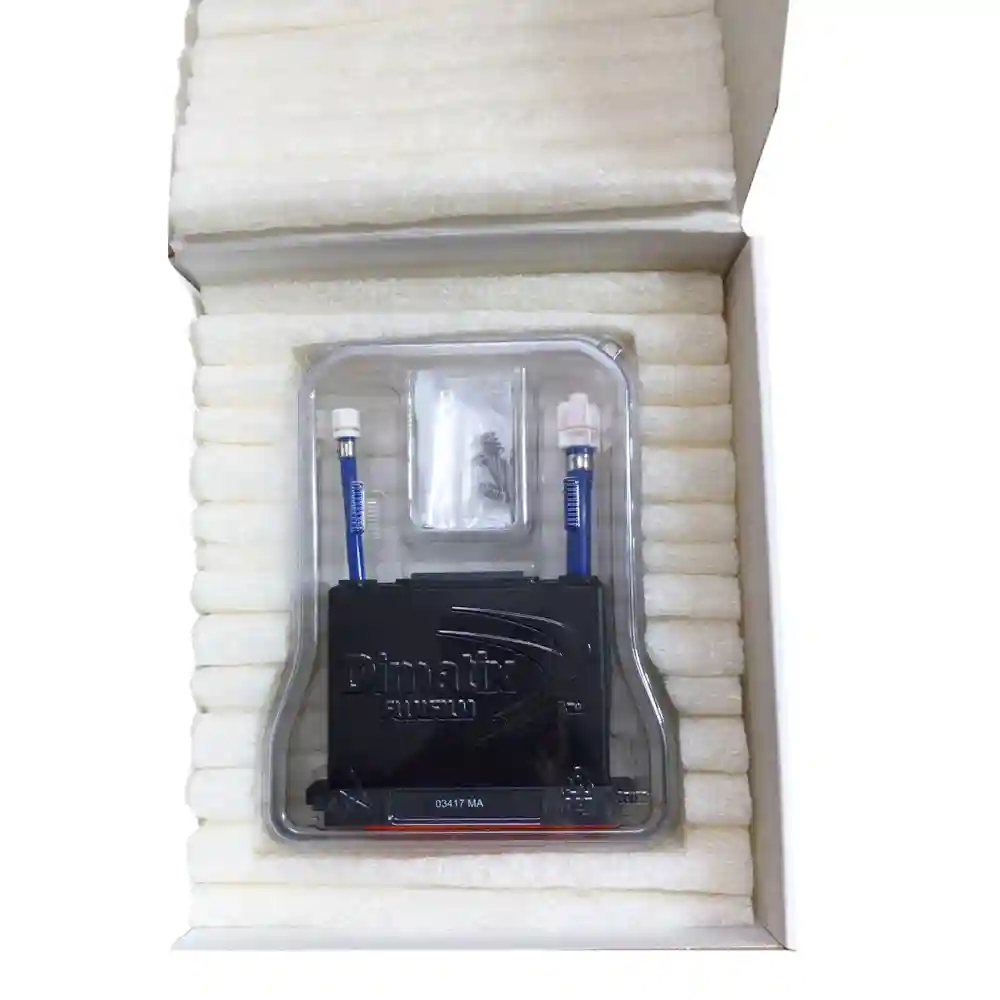

StarFire SG1024 / MA 25PL Printhead
To be used with: Apsom Technologies SMART-6000 4H / Jet FX
Description:
The StarFire SG1024/MA printhead is a breakout inkjet innovation for high performance printing and decorative applications. It is an easy to integrate, high performance, drop-on-demand printhead for single-color operation at resolutions up to 400 dpi.
Combining superior jetting performance with a high nozzle packing density in a compact, self-contained unit, the StarFire SG1024/MA uses field proven materials to deliver a long service life with consistent and reliable output.
Specifications:
Print Width: 64.96 mm [2.55 in.]
Nominal Drop Size: 30 picoliter
Adj. Range for Droplet Size: 30 to 80 picoliter
Tot. Amount of Nozzles: 1024 individually addressable jets
Nozzle Spacing: 0.0635 mm [0.0025 in.]
Max. Frequency: 30 kHz for 30 picoliter droplets, 11kHz for 80 picoliter droplets.
Resolution: Up to 400 dpi
Operating Temperature: up to 55°C
Ink Compatibility: UV-curable, organic solvents, and aqueous inks
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the characteristics of the printer components and the numerous factors involved in the installation process, we do not accept returns or refunds for electronic or service parts.
3. When purchasing products from us, please pay close attention to the information about the printhead. After receiving the goods, please check if the printhead matches the model you need. If you have any questions, please contact us as soon as possible before installing it on the machine. You can call +8618172083979 or email chunqinhuang@outlook.com.
