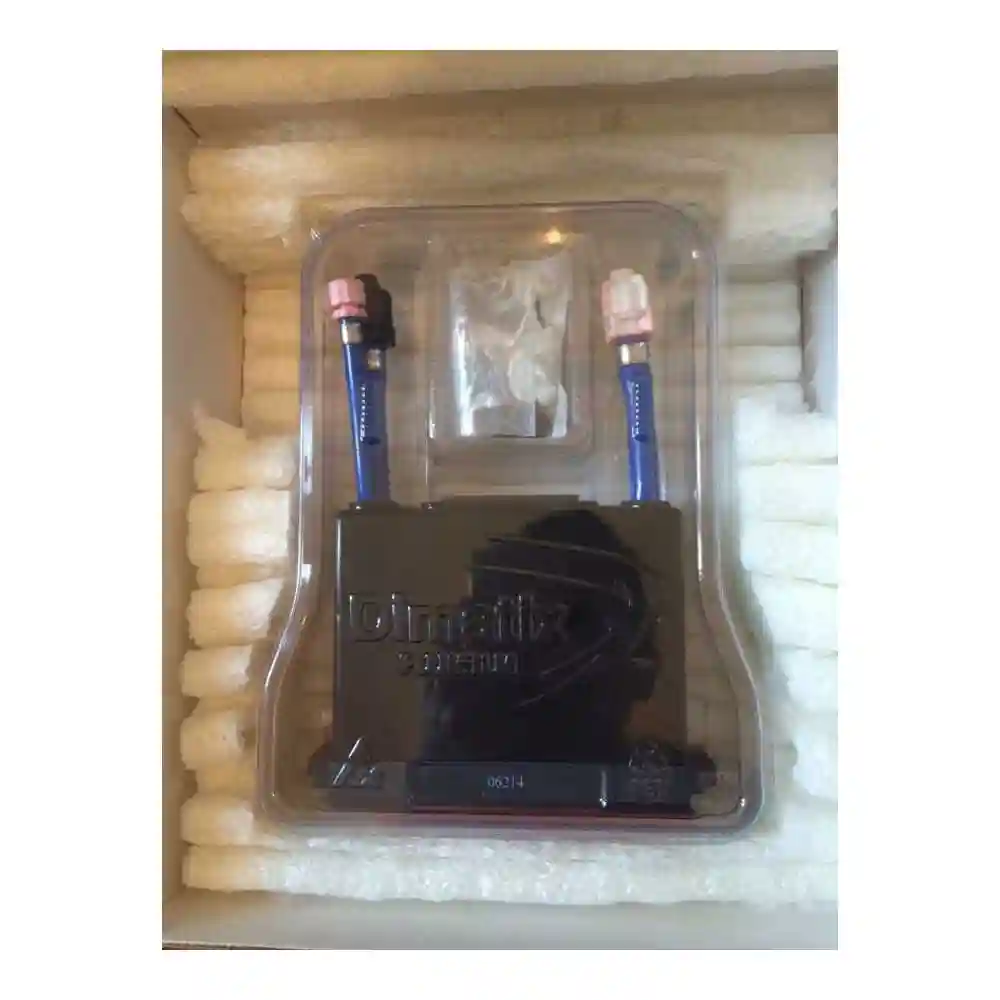

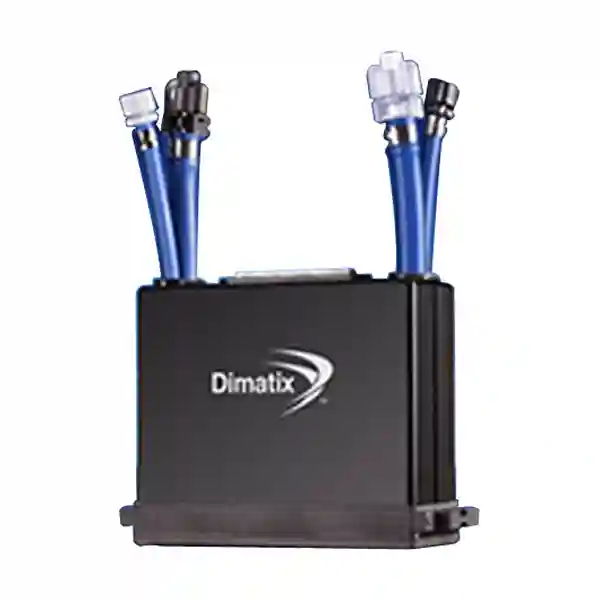

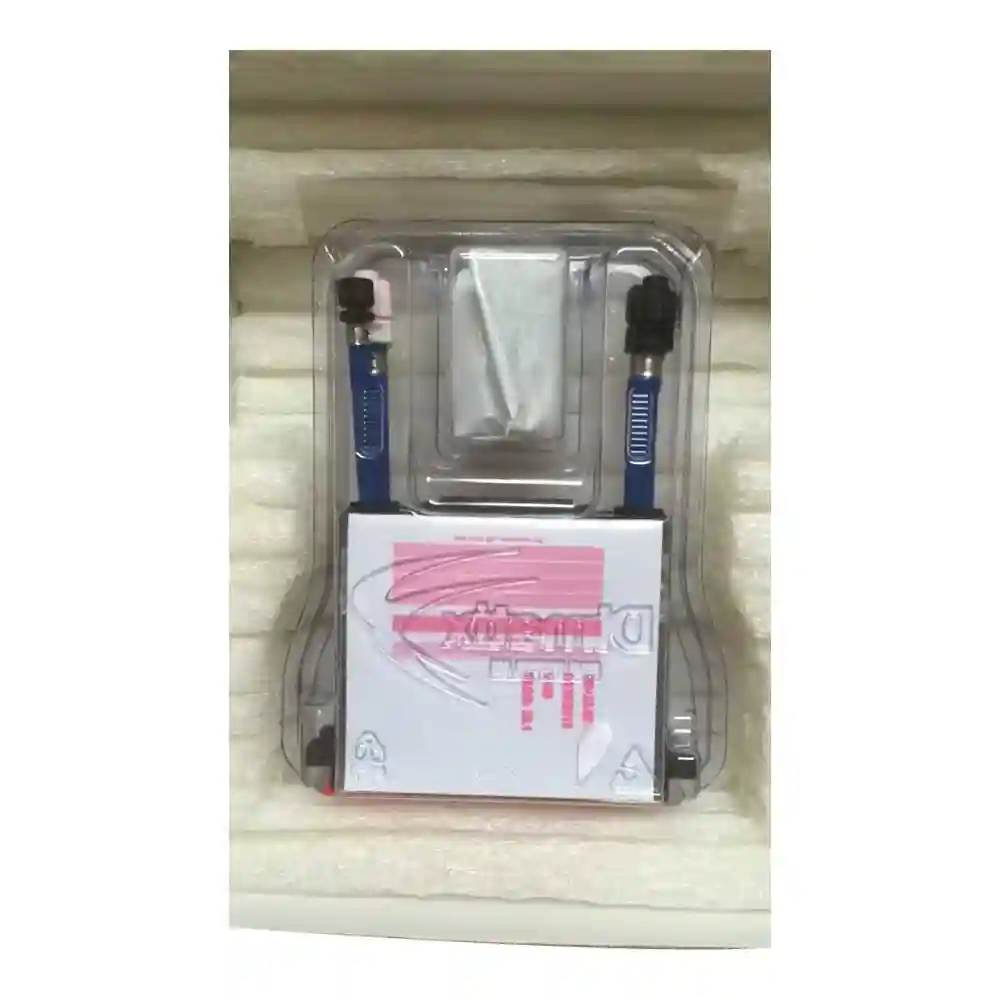

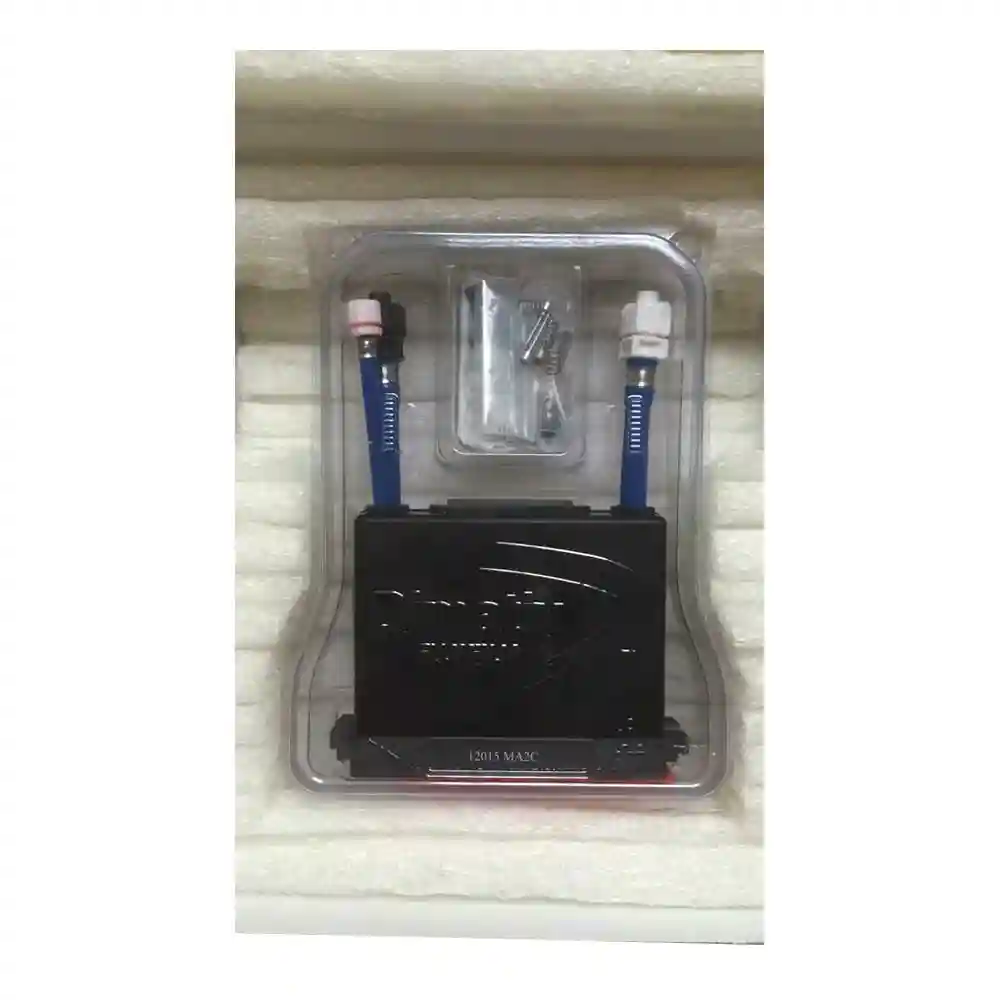

StarFire SG1024 / SA-2C 10PL Printhead
Unit Price:$2,470.00 - 2,520.00/pc
StarFire SG1024 / SA-2C 10PL Printhead
To be used with:
Atexco Vega-3160
Dip-Tech NeraD 6m
Gongzheng GZS3202 / StormJet GZM3202SG
Features:
• Robust and repairable construction
• 1024 individually addressable jets
• 12 picoliter nominal drop size
• Continuous ink recirculation with RediJet™
• Incorporate VersaDrop™ binary and grayscale jetting
• Removable/replaceable collar mounted, coated metal nozzle plate
Description:
The StarFire SG1024 / SA-2C is a compact, self-contained unit built to withstand demanding industrial textile and other applications. It uses field proven materials to deliver consistent output over a long service life with continuous ink recirculation and two-color operation at 200 dots-per-inch. Equipped with a single replaceable metal nozzle plate that is designed to withstand abrasion and resist damage. The unit is compatible with solvent, UV-curable and aqueous ink formulations.
Each printhead has two separate ink paths each with 512 independent channels arranged in 4 rows in a single nozzle plate for resolutions up to 200 dpi. All 1024 nozzles can be fired.
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the characteristics of the printer components and the numerous factors involved in the installation process, we do not accept returns or refunds for electronic or service parts.
3. When purchasing products from us, please pay close attention to the information about the printhead. After receiving the goods, please check if the printhead matches the model you need. If you have any questions, please contact us as soon as possible before installing it on the machine. You can call +8618172083979 or email chunqinhuang@outlook.com.
