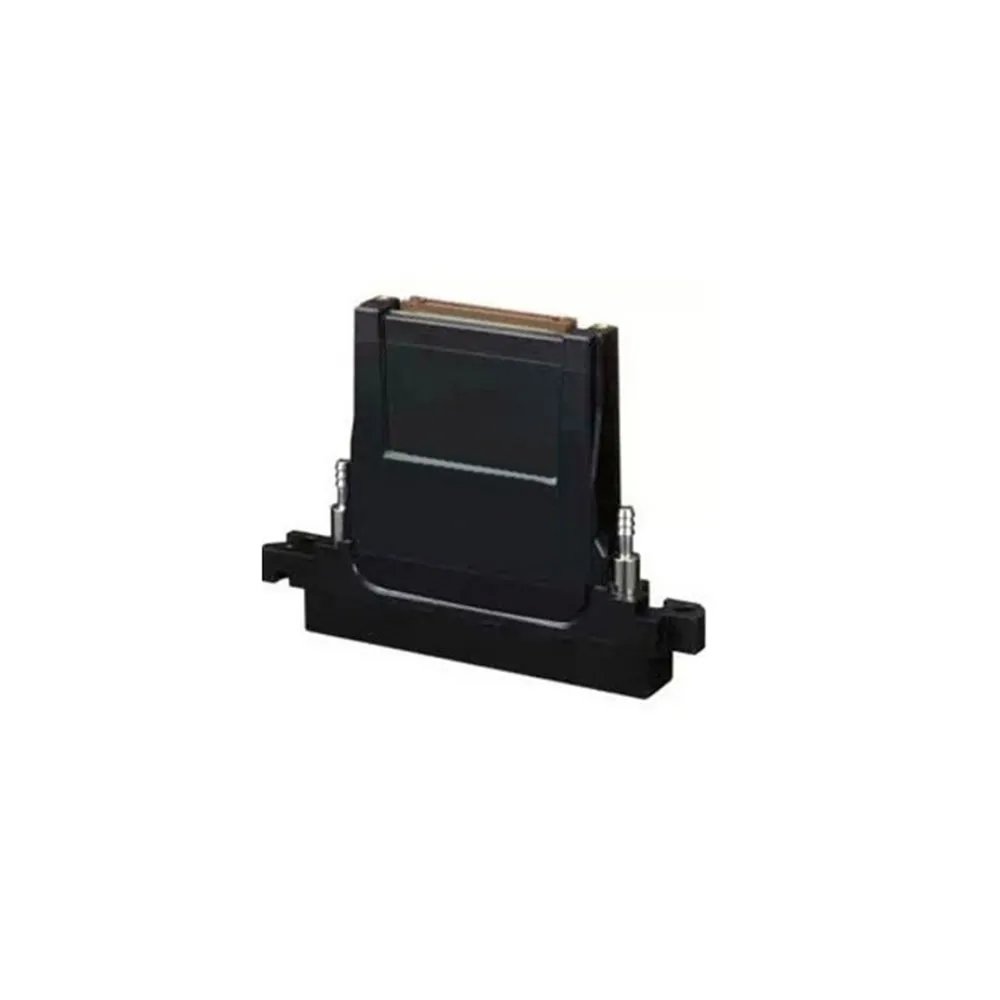

Konica KM1024i 6988H Printhead
Unit Price:$1,473.00 - 1,520.00/pc
Description:
The Konica Minolta KM1024i 6988H Printhead has high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. This Konica KM1024i 6988H printhead replaces the KM1024i MHE 13pl head.
Remark:
This printhead is a replacement of the Konica KM1024i MHE-D which is discontinued.
If you are a user in the PCB industry, please choose KM1024i MHE-D
Specifications:
• Technology: Piezo Drop On-Demand
• Native Resolution: 360 dpi
• Cal. Droplet Size: 13 pico litre
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Firing Frequency: 45 kHz
• Ink Compatibility: UV, Oil and Solvent Inks
• Heater: integrated
• Dimensions (W x D x H): 131mm x 18mm x 94mm
• Weight: Approx. 150g
Environmentally-considerate Approved Green Product
The Konica Minolta KM1024i 6988H printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series.
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the characteristics of the printer components and the numerous factors involved in the installation process, we do not accept returns or refunds for electronic or service parts.
3. When purchasing products from us, please pay close attention to the information about the printhead. After receiving the goods, please check if the printhead matches the model you need. If you have any questions, please contact us as soon as possible before installing it on the machine. You can call +8618172083979 or email chunqinhuang@outlook.com.
