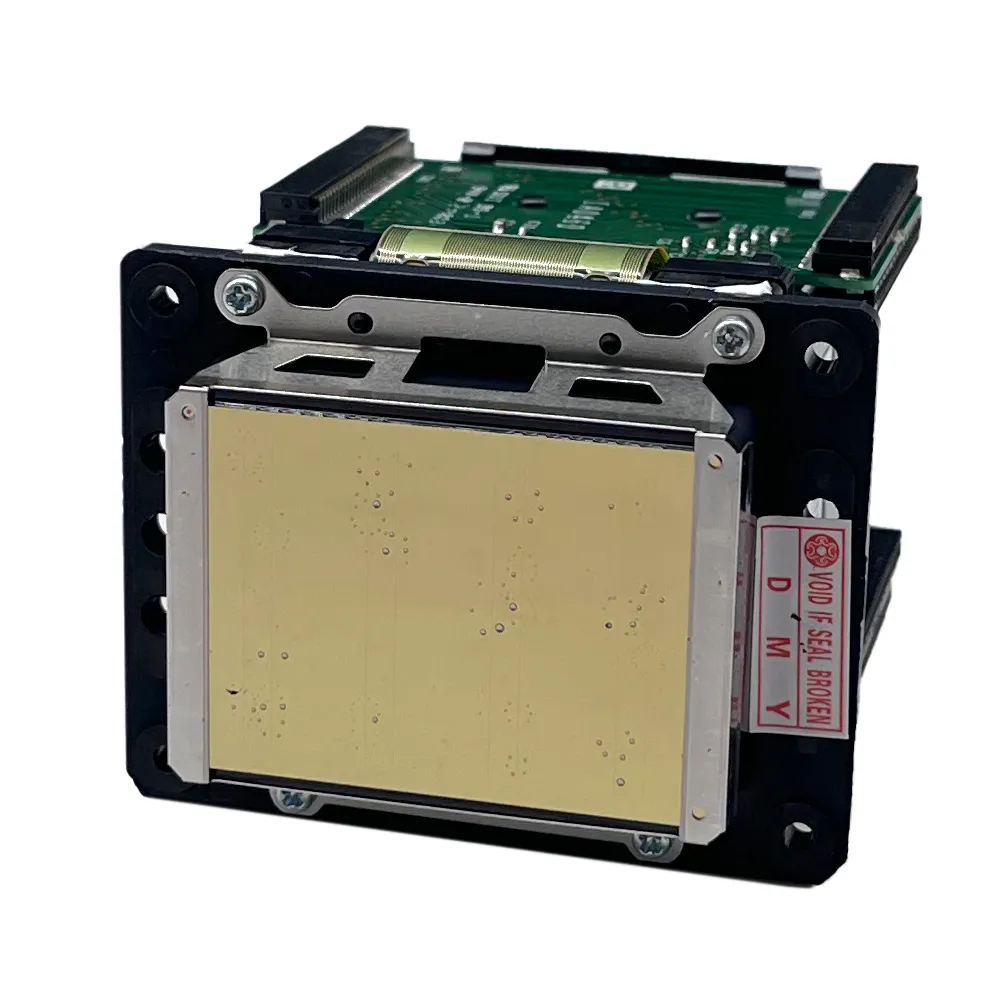

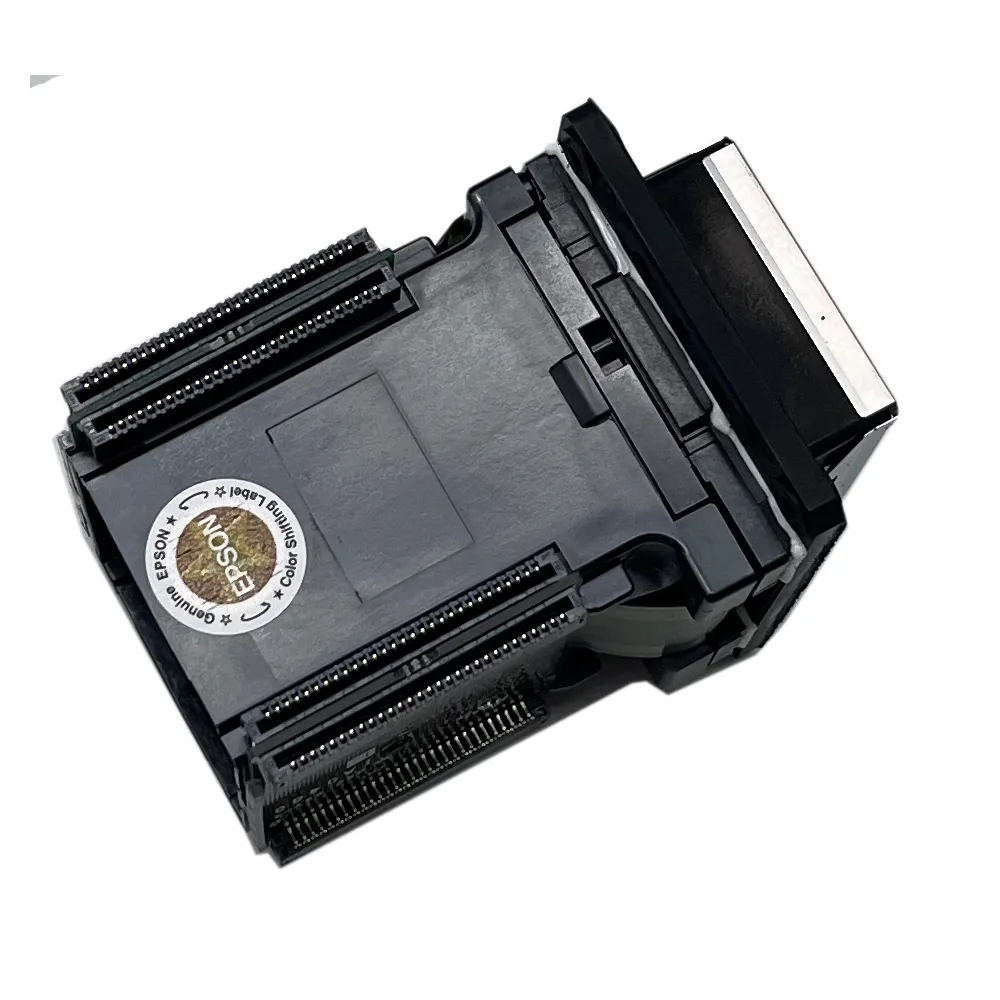

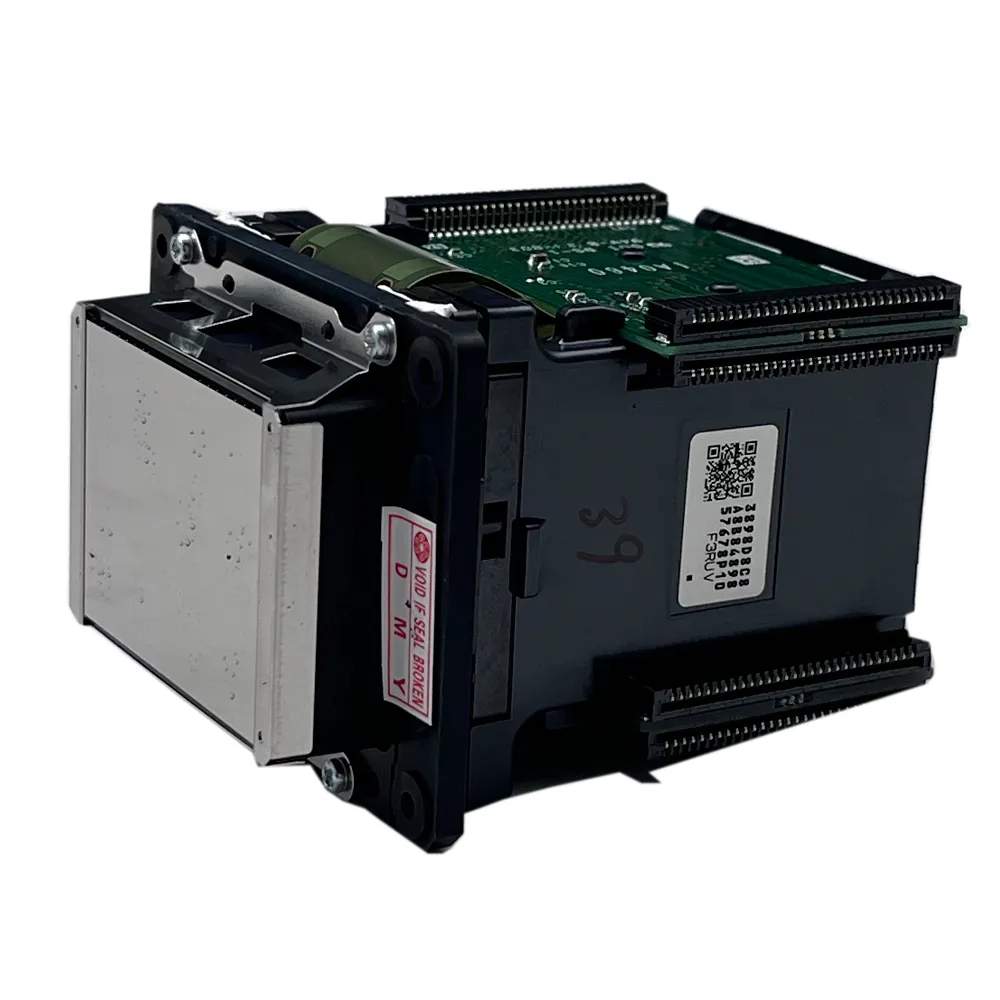

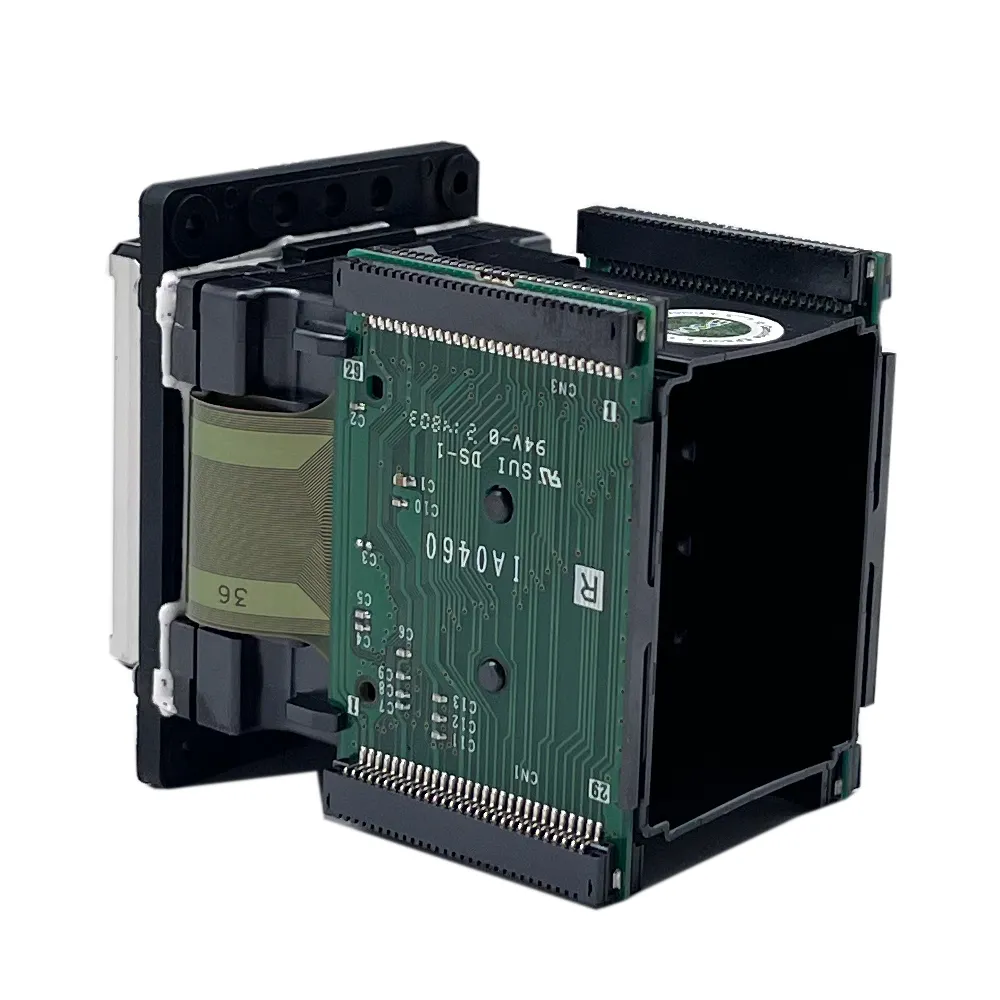

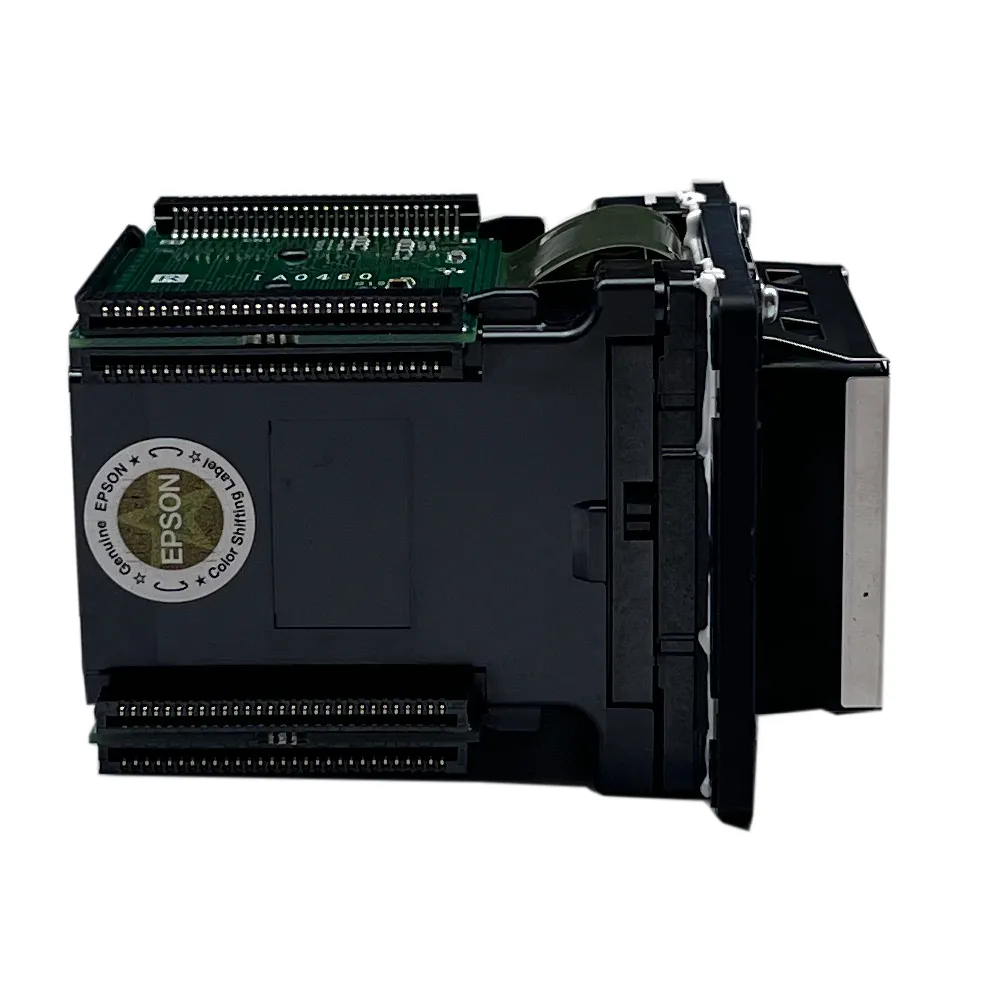

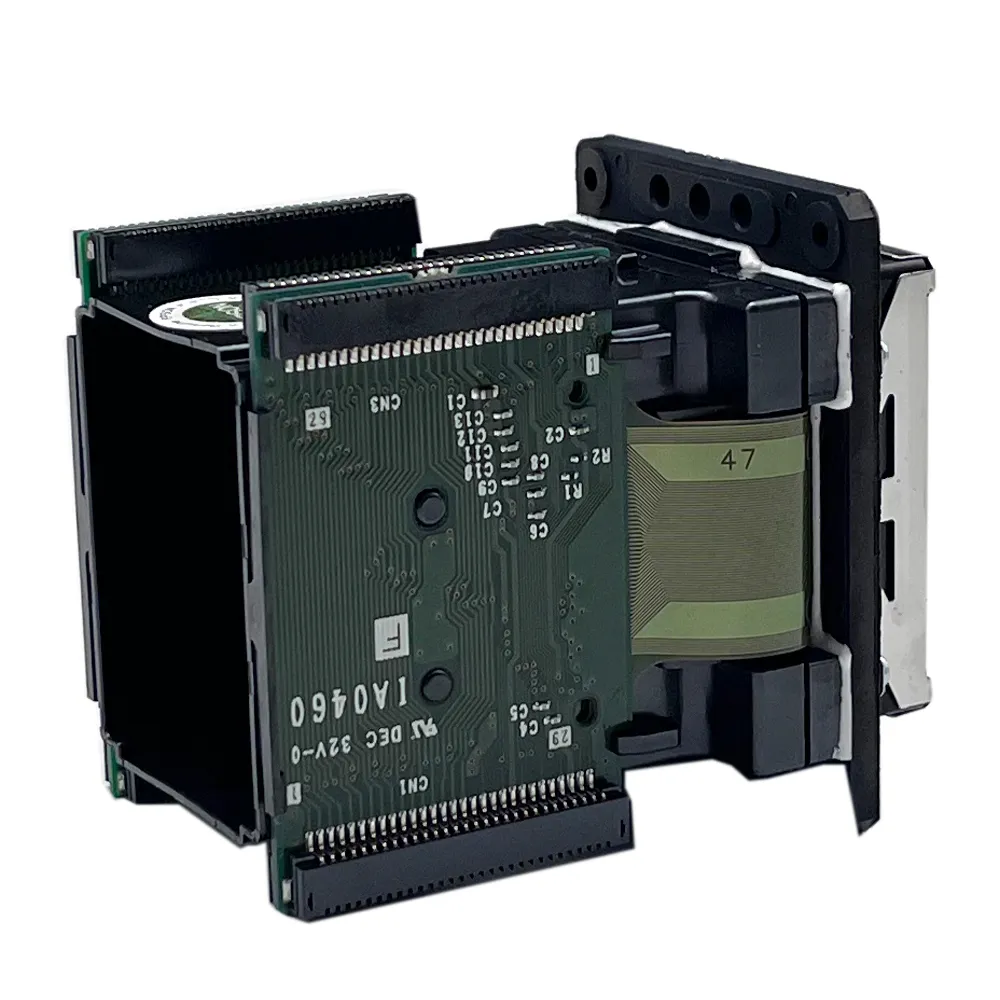

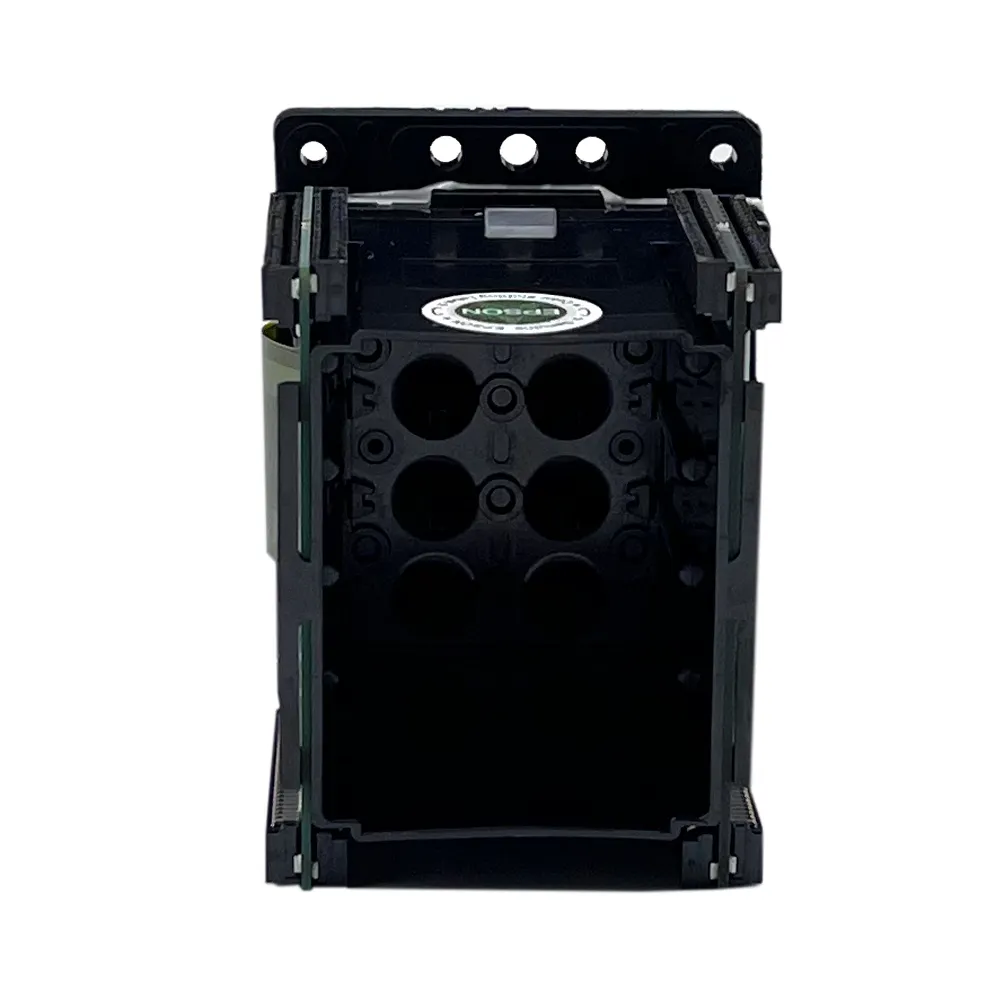

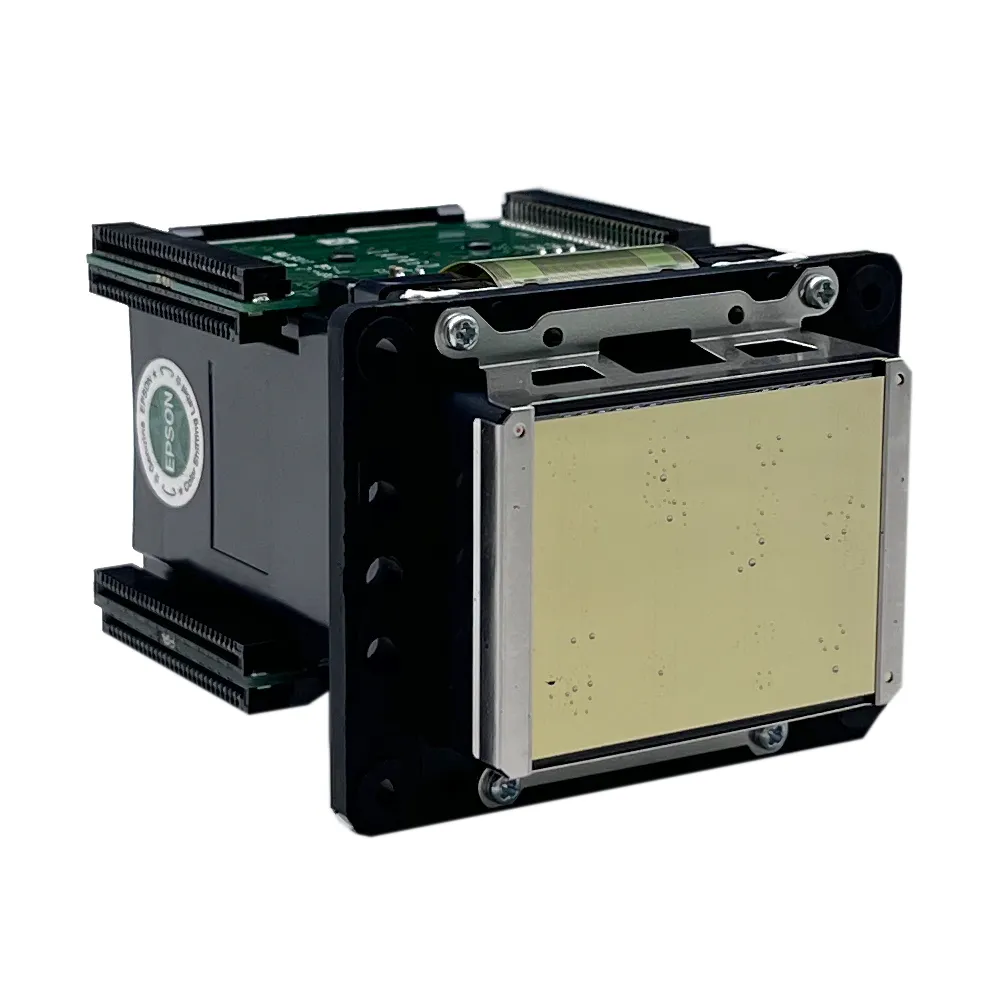

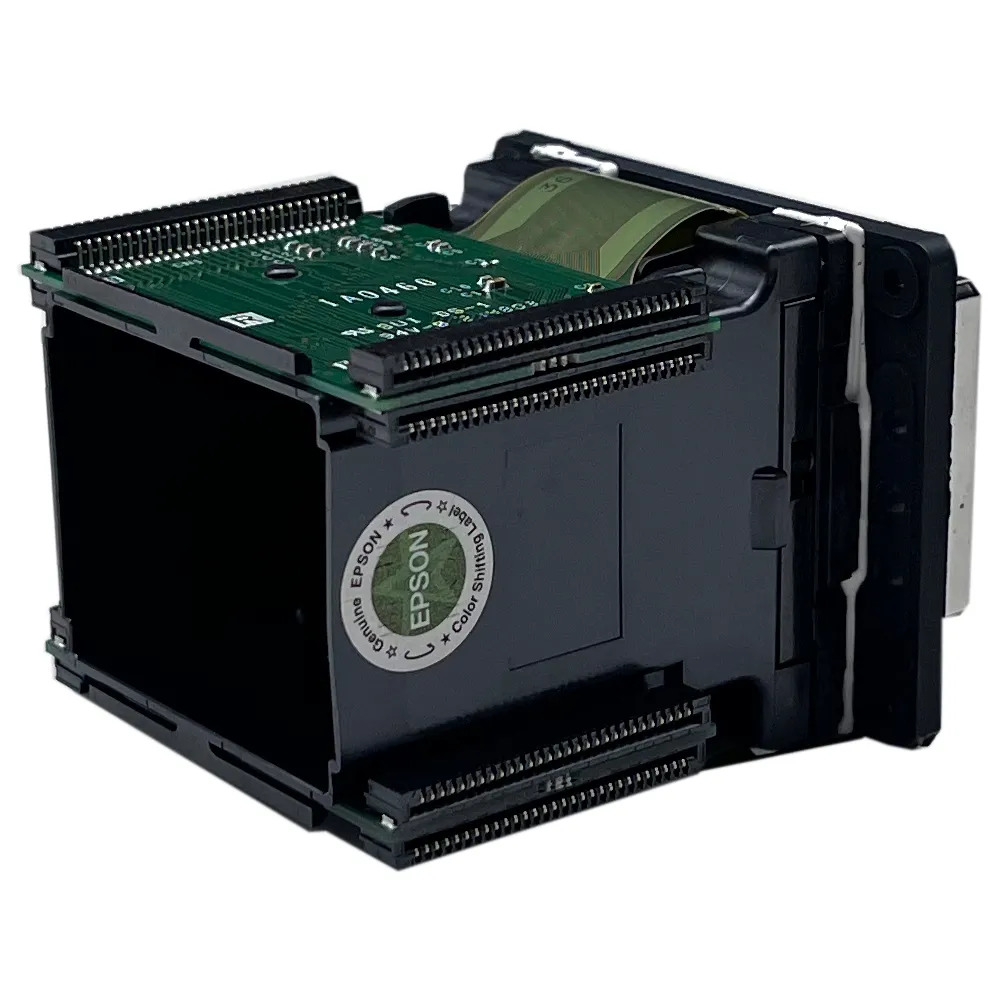

Epson L1440-U2 Printhead - FA45002
Unit Price:$1,605.00 - 1,640.00/pc
Overview:
Description:
The Epson FA45002 printhead developed with MACH technology provides high productivity and high image quality with high-density (300npi/2 rows). This printhead is suitable for UV and Eco-solvent inks.
To be used with:
Epson Stylus Pro 7890 / 9890 / 7908 / 9908
Epson SureColor P6000 / P8000 / P6080 / P8080
Specifications:
Ink type: UV / Eco Solvent
Type: MACH (Multi Layer Actuator Head)
Width x Depth x Height: 60.4 x 46.9 x 71.1 mm
Weight: 97g
Number of nozzle: 1440
Nozzle pitch/ nozzle row: 1/180 inch
Nozzle rows: 8 rows
Nozzle Resolution: 180 npi/ row, 360 npi/ 2 rows
Max. number of colours ink: 8 colours
Effective print width: 25.4mm (1 inch)
Droplet ejection performance:
Binary: 10 pl at 40kHz
4 levels grey scale: 4.5, 10, 19pl at 20kHz
Viscosity range: 6-8mPa·s
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the characteristics of the printer components and the numerous factors involved in the installation process, we do not accept returns or refunds for electronic or service parts.
3. When purchasing products from us, please pay close attention to the information about the printhead. After receiving the goods, please check if the printhead matches the model you need. If you have any questions, please contact us as soon as possible before installing it on the machine. You can call +8618172083979 or email chunqinhuang@outlook.com.
