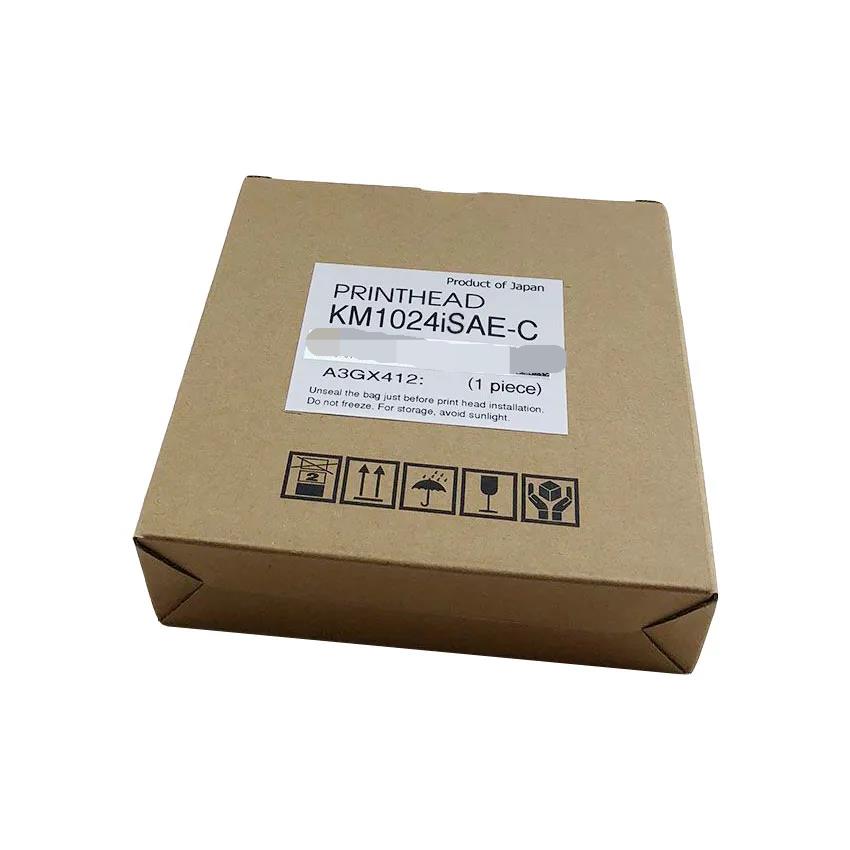

Konica KM1024i SAE-C 6PL Printhead
Unit Price:$2,220.00 - 2,265.00/pc
Konica KM1024i SAE-C 6PL Printhead
Description:
The Konica Minolta KM1024i SAE-C printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted.
This is the original Konica KM1024i SAE-C printhead.
Printer Compatibility:
Konica Minolta Nassenger 10, Nassenger 8, Nassenger SP1
Specifications:
• Technology: Piezo Drop On-Demand
• Native resolution: 360npi (90npi x 4lines)
• Cal. Droplet Size: 6 pico litre
• Total nozzles: 1024 (256nozzles x 4lines)
• Print width: 72 mm
• Firing Frequency: 43 Khz
• Ink compatibility: Aqueous inks
• Remarks: Original
• Dimensions: W131 mm x D18 mm x H94 mm
• Weight: 150g
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the characteristics of the printer components and the numerous factors involved in the installation process, we do not accept returns or refunds for electronic or service parts.
3. When purchasing products from us, please pay close attention to the information about the printhead. After receiving the goods, please check if the printhead matches the model you need. If you have any questions, please contact us as soon as possible before installing it on the machine. You can call +8618172083979 or email chunqinhuang@outlook.com.
