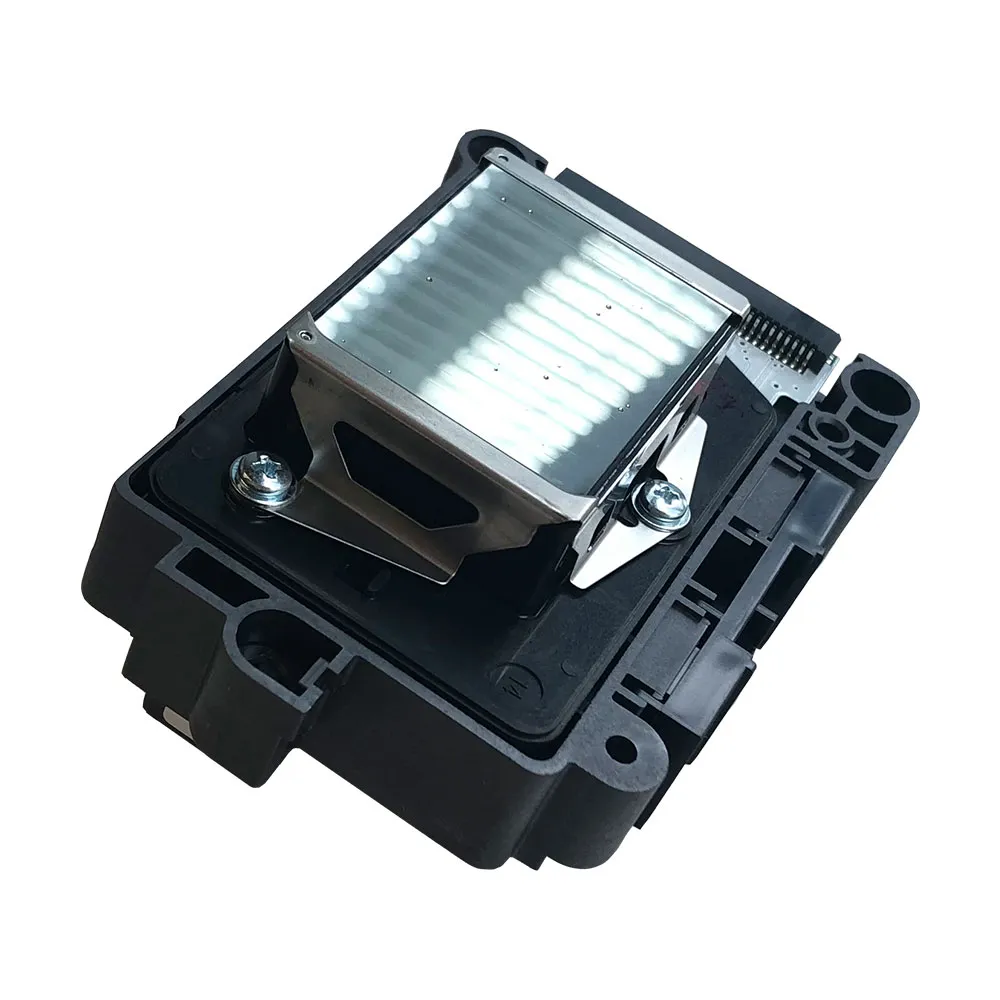

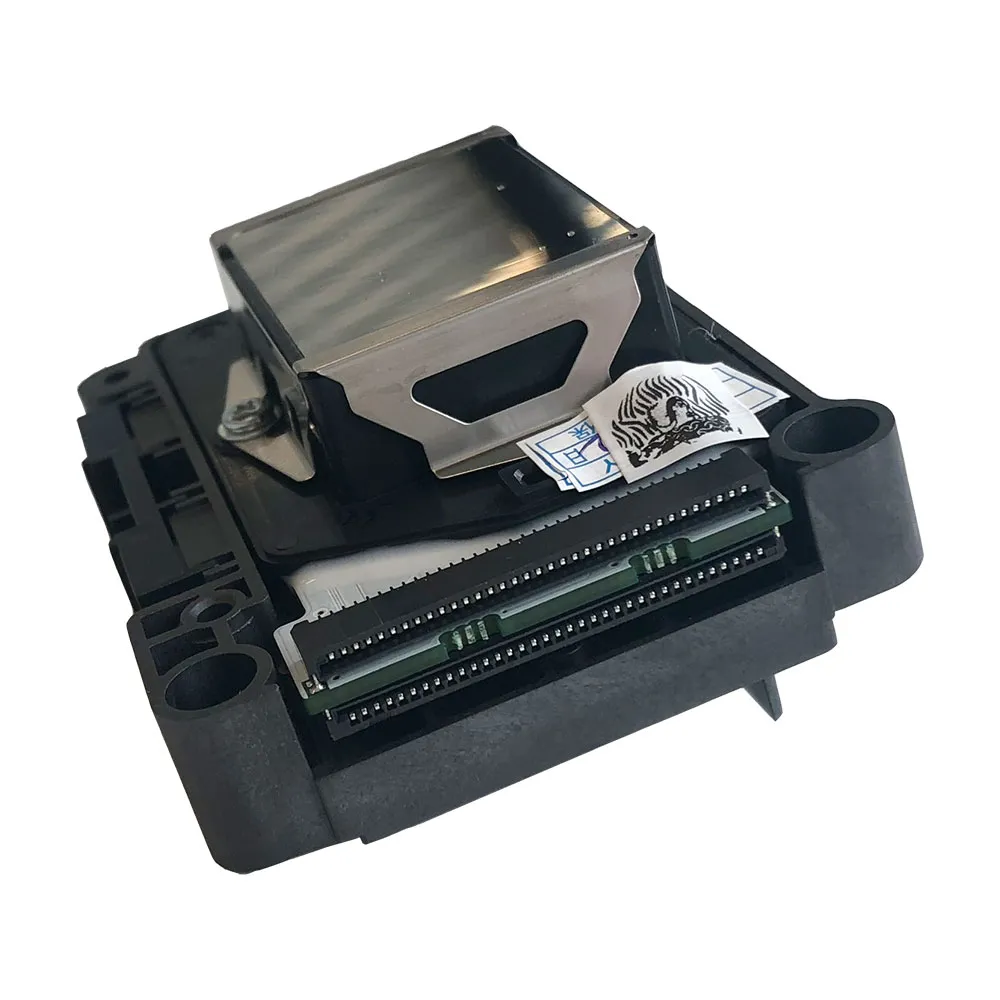

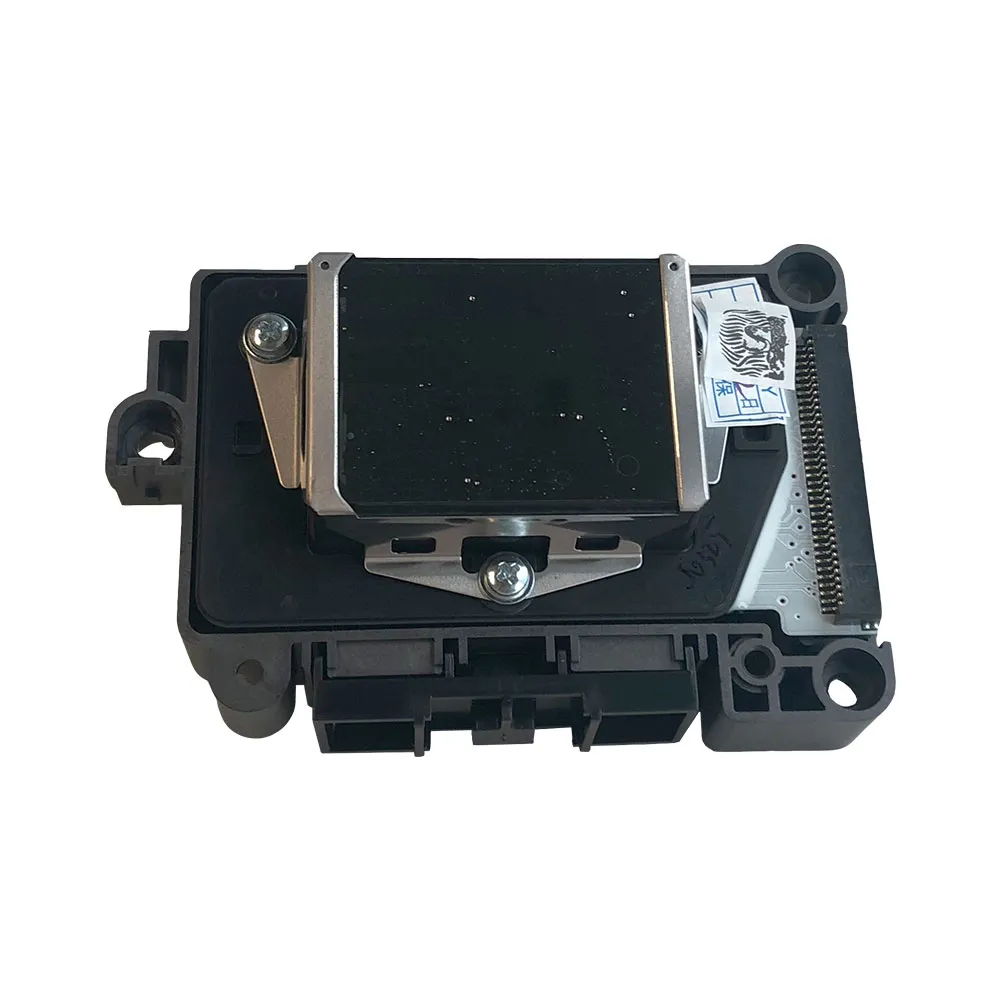

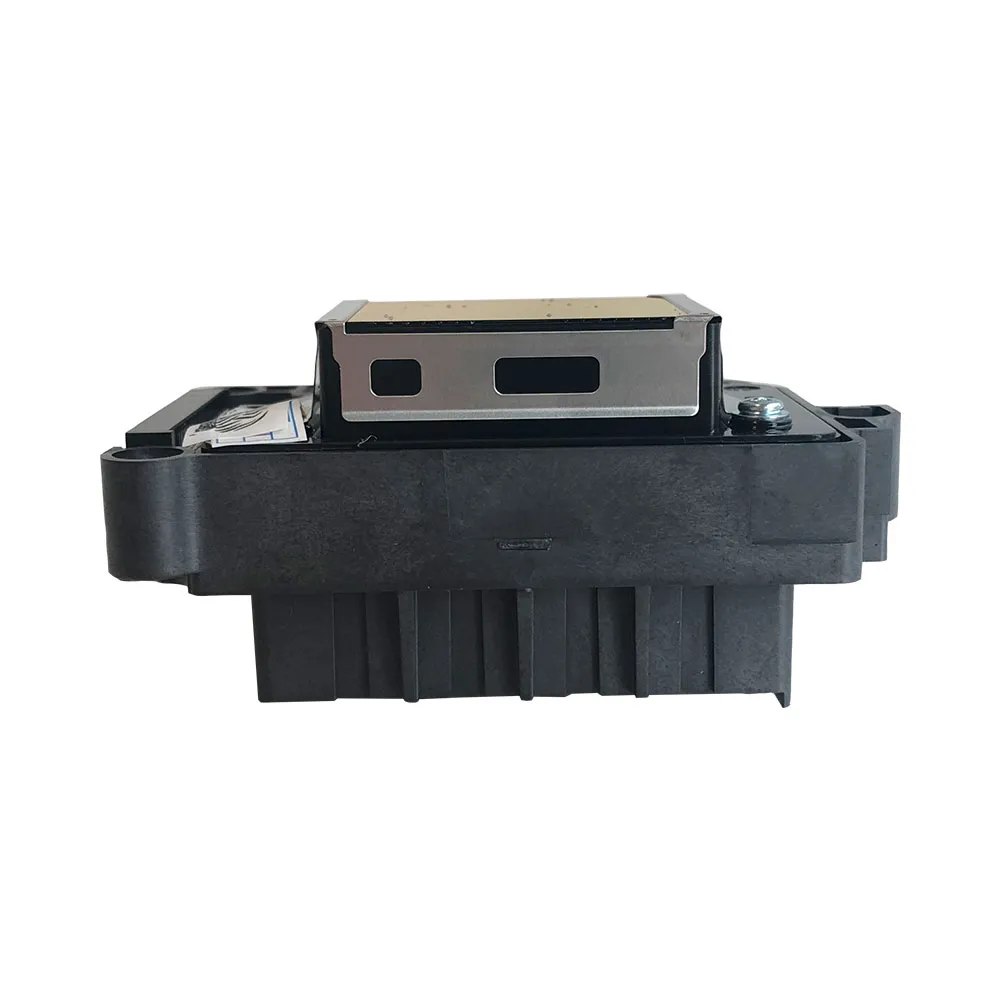

Epson SureColor P800 printhead F196000 (Third Time Locked) / F196010
Unit Price:$840.00 - 860.00/pc
Description:
This is the original Epson F196000 head 3rd-coded for Epson SureColor P800 printer and certain solvent based DX7 printers. This printhead Epson part number is F196010.
This printhead has 8 channels and 180 nozzles per channel. It has a 3,5 picoliter drop size with Variable-Sized Droplet technology.
Normally there are two white blocks on the head circuit board, and the last three letters of the head ID is with black background. The head ID for this 2nd coded F196000 has 3 x 7 + 6 digits. We offer 4 versions of this printhead: ”not coded’’, ”1st coded”, ”2nd coded” and “3rd coded”. Please make sure you select the right printhead for your printer as they are not compatible.
To be used with:
Epson SureColor P800
Texjet Echo 2
Remarks: Original
Specifications:
Technology: Micro-Piezo
Native resolution: 1440 dpi
Min. Droplet Size: 1.5 pico litre
Max. Droplet Size: 21 pico litre
Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)
Firing Frequency: 8 kHz
Ink Compatibility: eco-solvent and mild solvent
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the characteristics of the printer components and the numerous factors involved in the installation process, we do not accept returns or refunds for electronic or service parts.
3. When purchasing products from us, please pay close attention to the information about the printhead. After receiving the goods, please check if the printhead matches the model you need. If you have any questions, please contact us as soon as possible before installing it on the machine. You can call +8618172083979 or email chunqinhuang@outlook.com.
