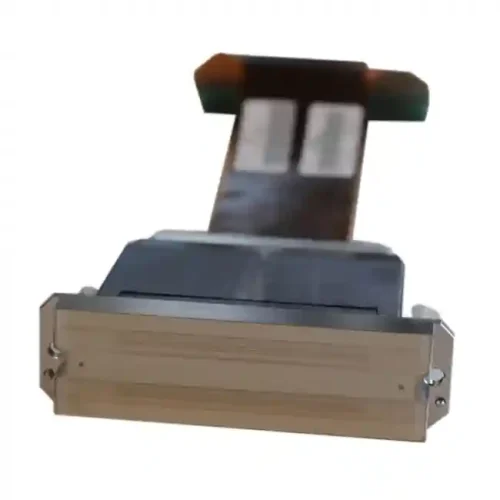

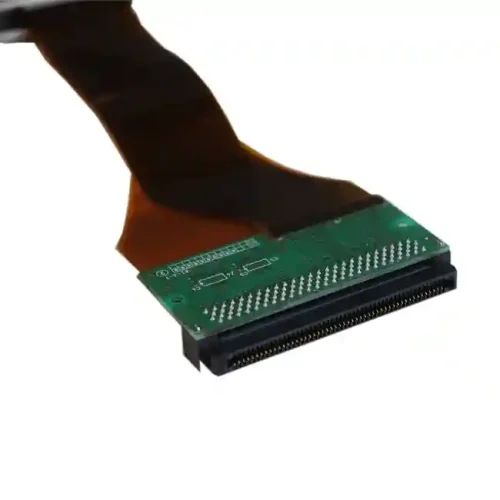

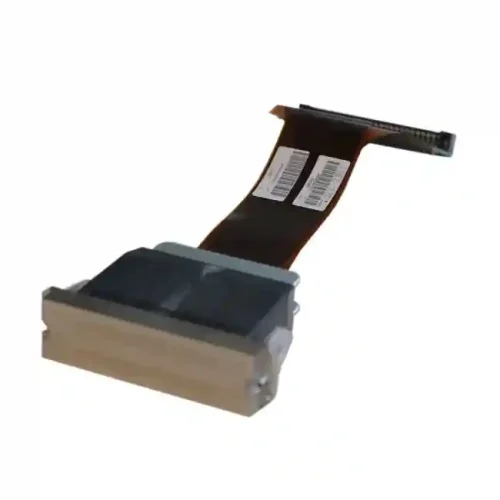

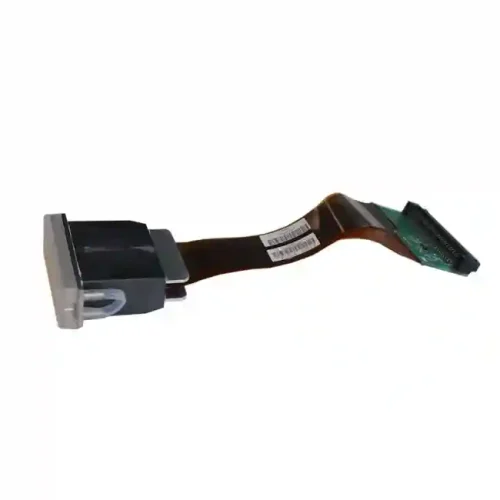

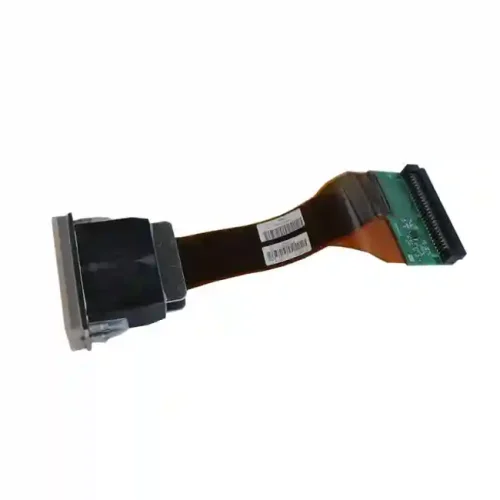

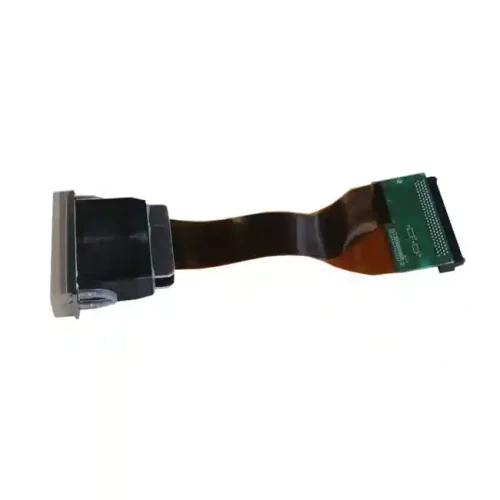

Ricoh Gen5 / 7PL Water-based Printhead, MH5421 (Two Color, Short Cable: 248mm) - J36002
Unit Price:$1890.00-1929.00/pc
Remarks: Original
Description:
This Ricoh GEN5 water printhead is suitable for a range of water-based printers. It supports up to 2 colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers.
This Ricoh GEN5 is 248mm long in total (head body + cable + connectors).
Specifications:
Dimensions: 89 x 25 x 69 mm (excluding cables)
Cable length: 148mm
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Piezo yype: D33 Stacked PZT
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80° C
Native drop volume: 7 pl
Drop volume range: 7 – 35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHZ
Ink compatibility: Water Inks
Life: 100 billion actuations per nozzle
Printer Compatibility:
ATP Color DFP1320, DPP740 G5
DIP J4
Hollanders ColorBooster 230, 250
MTEX Turbo Sub
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the characteristics of the printer components and the numerous factors involved in the installation process, we do not accept returns or refunds for electronic or service parts.
3. When purchasing products from us, please pay close attention to the information about the printhead. After receiving the goods, please check if the printhead matches the model you need. If you have any questions, please contact us as soon as possible before installing it on the machine. You can call +8618172083979 or email chunqinhuang@outlook.com.
