Ricoh GEN6 MH5320 Printhead (Two Colors, 5PL) - J376-03
Unit Price:$1760.00 - 1800.00/pc

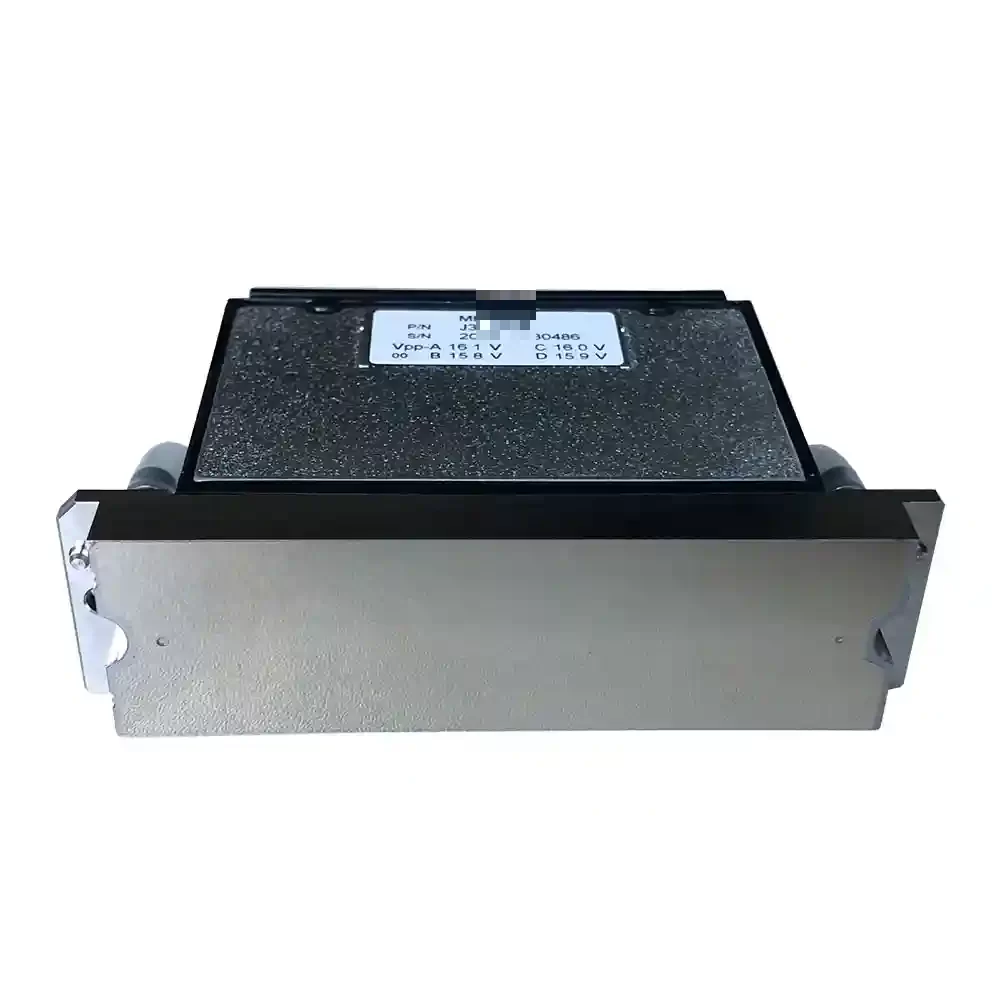

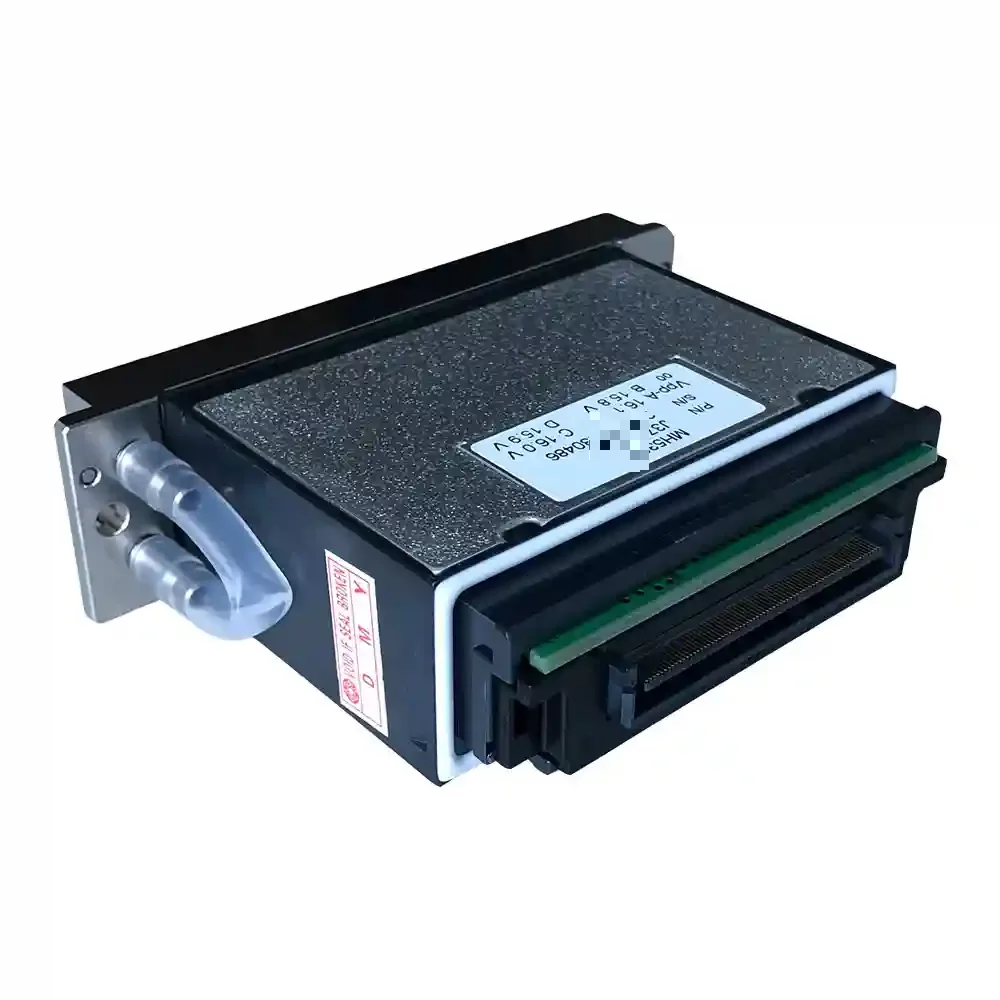

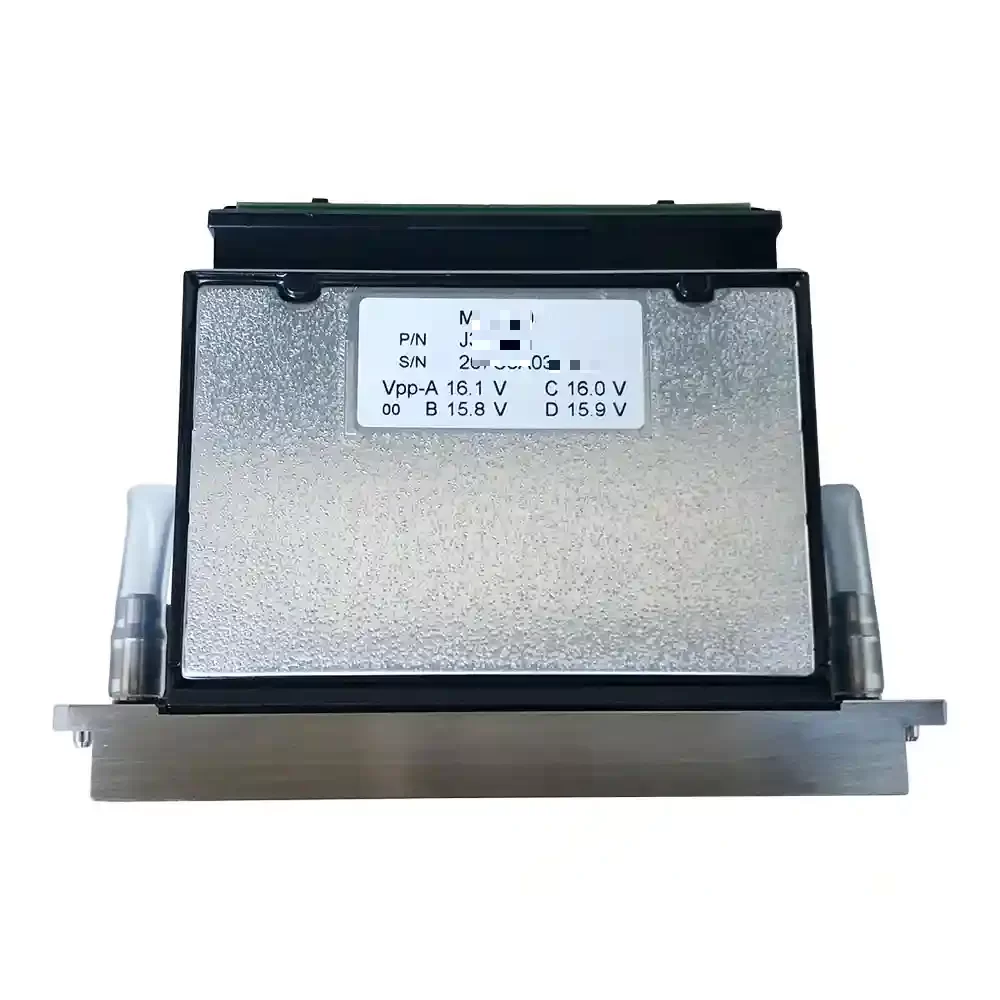

Ricoh GEN6 MH5320 Printhead (Two Colors, 5PL) – J376-03
Manufacture: Ricoh
In addition to high durability by stainless steel housing, ink compatibility are enhanced.
This Inkjet head is use for various application by high-definition and high-productivity. And this head is compatible with UV, Solvent and Aqueous based inks.
Printer Compatibility:
M5000
SG6 2030
MC2512RV
Hollanders Colorbooster 320
PrintJet HYB2000
Description:
This Ricoh GEN6 head (MH5320 series) is compatible with UV based inks. The service life of the MH5320 is more than double that of the MH5421 that preceded it. This is the 2 colour head.
A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.
This printhead has a cable of 447mm and a total length including the printhead of 500mm.

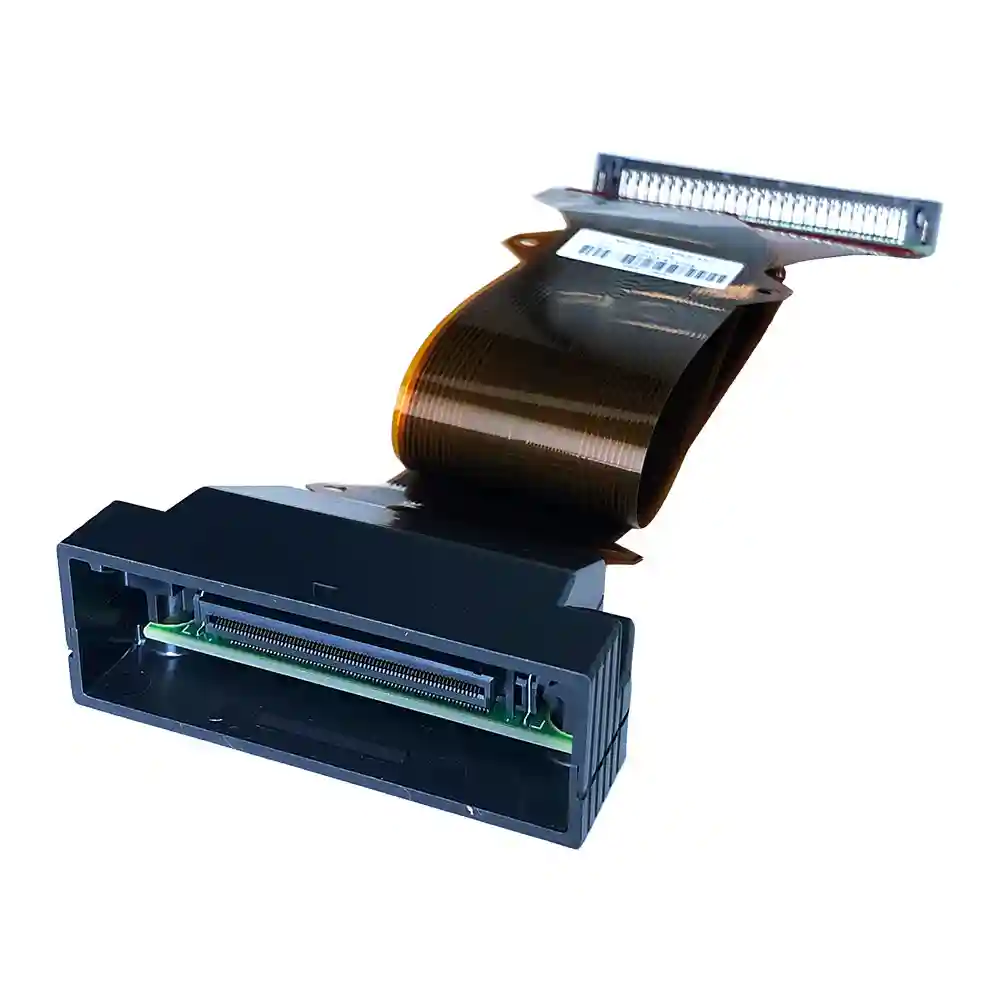

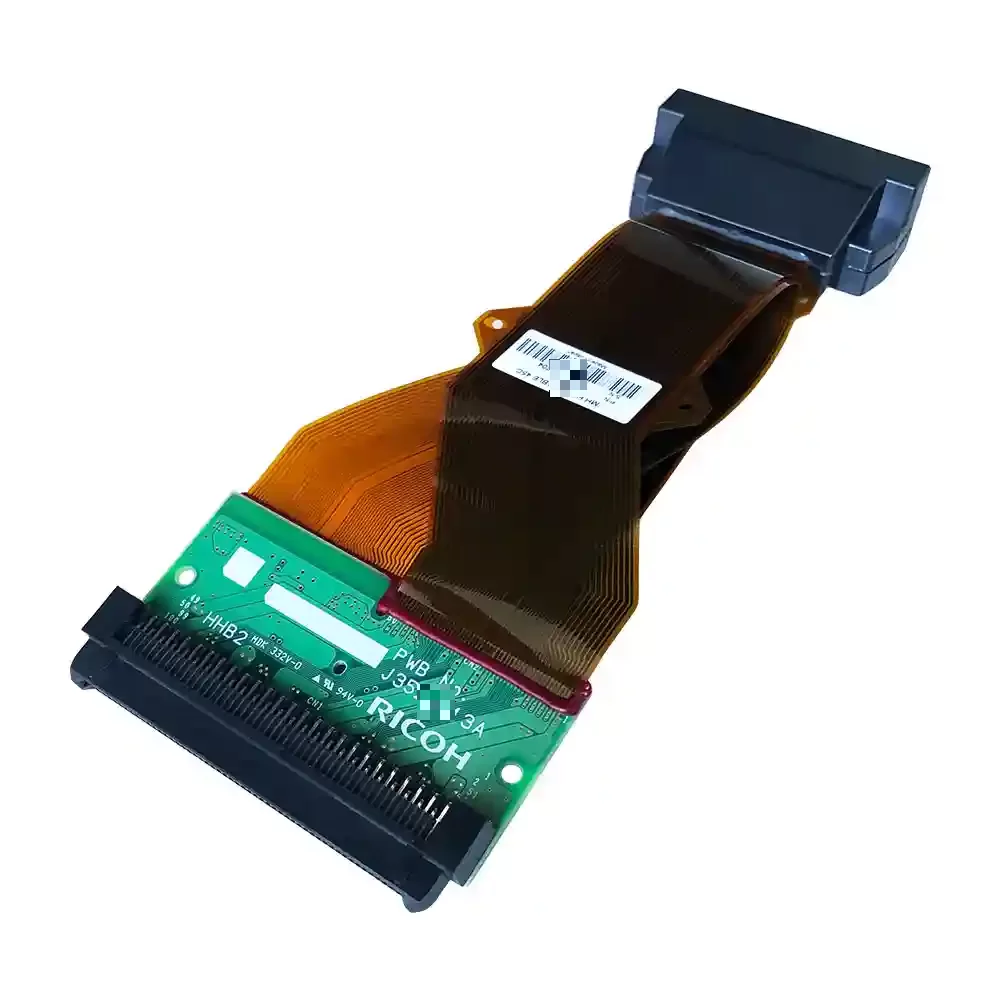

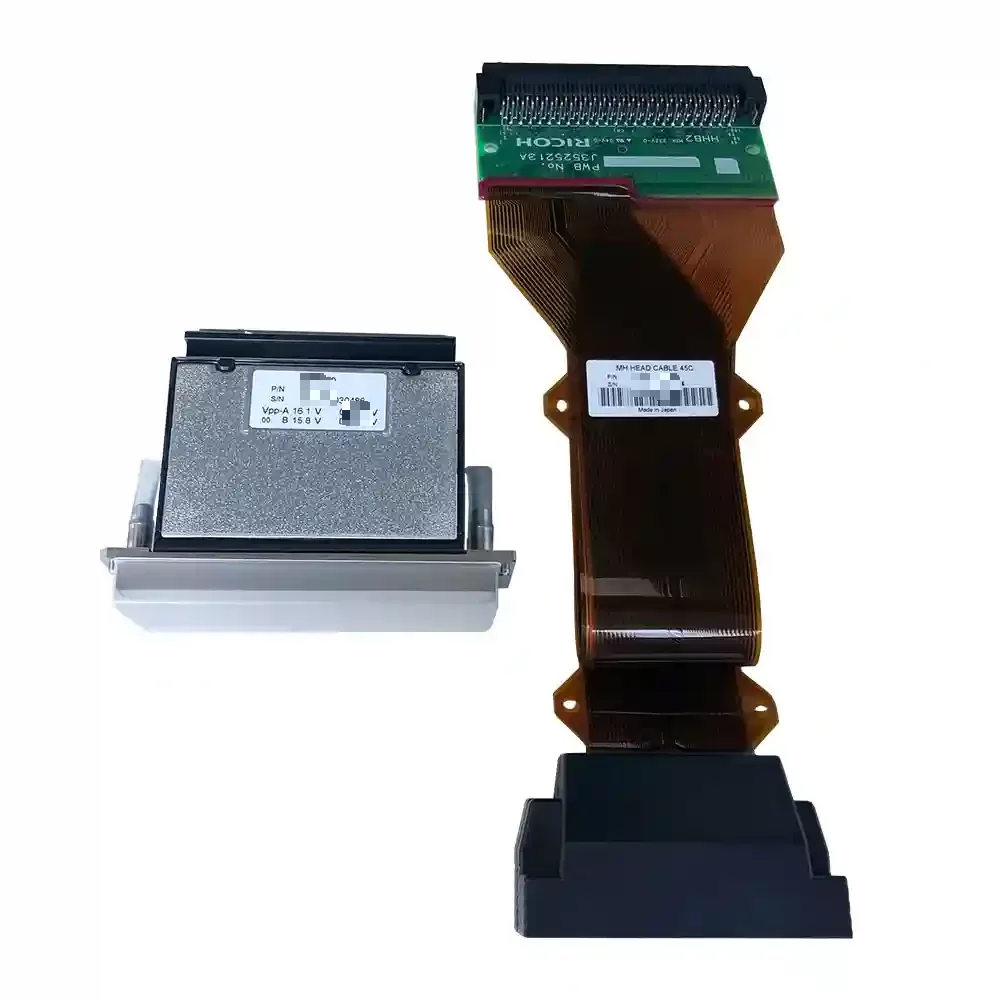

This printhead is made of the two skus: J376-03 (head) and J352-04 (cable 445mm).
Specifications:
Method: Piston pusher with metallic diaphragm plate
Print Width: 54.1 mm (2.1″)
Dimensions: 89(W) x 66.3 (D) x 24.51 mm (H)
Weight: 228g (including 45C cable)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle spacing (Row to row distance): A: 1.101mm B: 11.8411 mm
Compatible ink (UV, Solvent, Asueous, Others.
Nozzle density: up to 600 npi
Max.number of color inks: 2 colors
Temperature control: Integrated Heater and Thermistor
Operator temperature range: 60° C
Drop volume: Binary mode : 5pl / Grey-scale mode : 5-15pl
Jetting frequency: 50kHz (3 levels); 40kHz (4 levels)
Grey-scale: 4 levels
Viscosity ranfe: 10~12mPa・s
Surface tension: 28~35mN/m
Ink Port: Yes
We recommend to change the head cables when installing a new printhead.
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the characteristics of the printer components and the numerous factors involved in the installation process, we do not accept returns or refunds for electronic or service parts.
3. When purchasing products from us, please pay close attention to the information about the printhead. After receiving the goods, please check if the printhead matches the model you need. If you have any questions, please contact us as soon as possible before installing it on the machine. You can call +8618172083979 or email chunqinhuang@outlook.com.
